Wire bending machine (KZ12BX)

Stirrup bender is designed to complete straightening,bending and cutting on one machine. Coil is the prefer raw material choice .The machine is capable of providing our clients the most accurate cutting , straightening, bending and high effect, which is widespread used in high speed railway, bridge, real estate, reinforcing steel processing factories , etc.


  • Details
  • Video
  • Inquiry

Model KZ12BX
Raw material Coil
Single wire Diameter (mm) φ5-12
Double wire Diameter (mm) φ5-10
Max Bending Angle (°) ±180
Max Pulling Speed (m/min) 72
Max Bending Speed (°/s) 1000
Bending Direction Bi-direction
Length Tolerance (mm) ±2
Bending Tolerance (°) ±1
Single Wire Max Production Capacity (hour) 700 (standard size)
Double Wire Max Production Capacity (hour) 1400 (standard size)
Overall dimension L*W*H (mm) 12,000*3000*2000
Labeled electric power (kw) 24
Machine Weight (kg) 3500
Cylinder Pressure (Mpa) ≥0.6
Max. length of the stirrup side (diagona) (mm) 1230

Stirrup Bending Machine Product Advantages

1. Large processing range, can be bent forward and backward;

2. Fixed cutter can be used on both sides to improve service life and reduce cost;

3. Configure automatic feeding mechanism, saving time and effort;

4. Single Wire Diameter 5-12 mm, double wires 5-10 mm; precision and fast machining;

5. Stirrup Bending Machine has high precision of PLC control, LCD display is easy for operating, have mighty graphics library, it is able to communicate with management software;

6.KZ12BX Upright front panel Diagnal length of max stirrups :1230mm For domestic market or budget limited clients Mitsubishi PLC or China brand PLC optional

7.SKZ of wire bending machine has been sold more than 3500 pieces around the world.

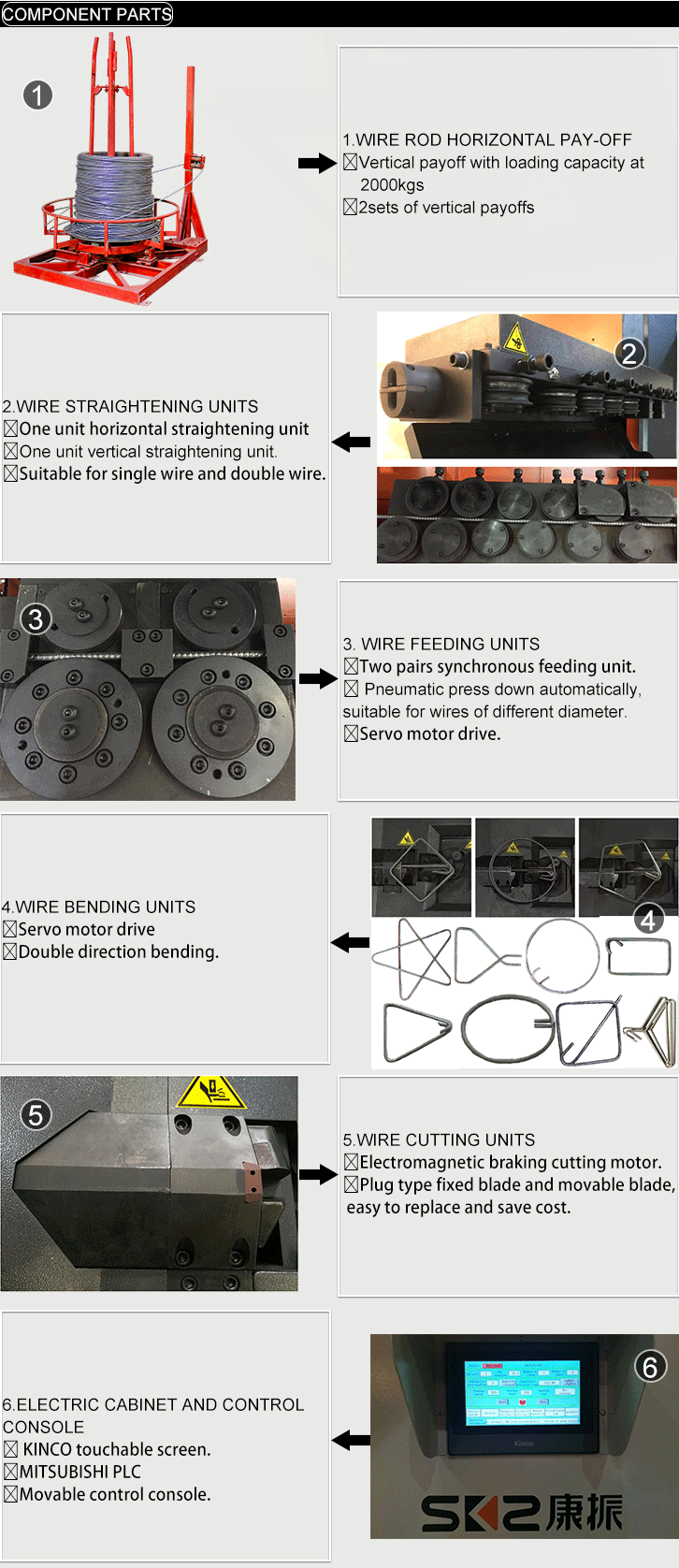

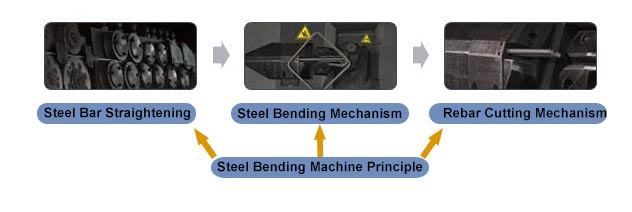

Steel Bending Machine Principle

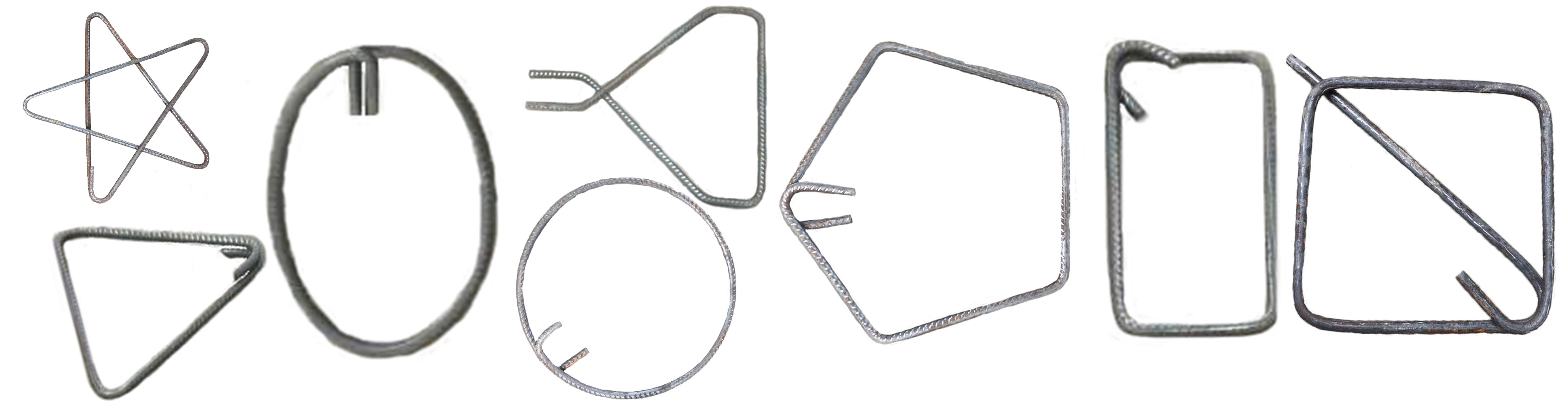

          The wire rod steel bar is firstly conveyed to the bending mechanism of the steel bar bending machine after horizontal straightening and vertical straightening, and then conveyed to the bending mechanism of the steel bar bending machine, and the flexible bending of the wishing elbow is controlled by the PLC program to quickly realize the bending forming process of the various shapes of the stirrups. Then, the finished product of the stirrup is cut by the steel cutting mechanism. The entire process is fully automated and requires no human intervention.
